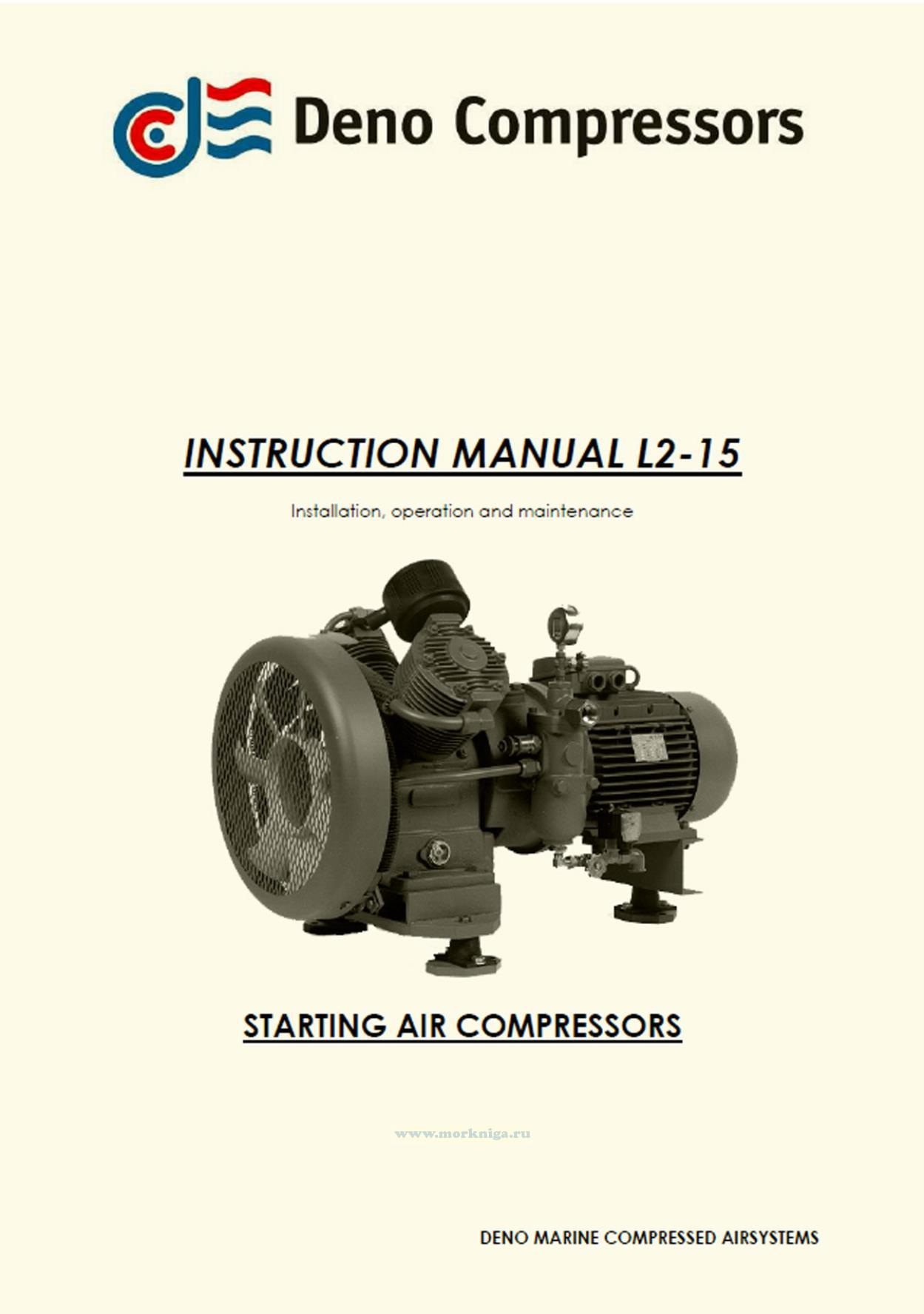

Starting air compressors. Instruction manual L2-15. Installation, operation and maintenance

Инструкция по эксплуатации L2-15 на английском языке
The DENO compressor L2-15 is an air-cooled 2-stage single acting compressor which is mainly used to start marine and shore-based diesel engines. It is also widely used as general compressed air source, e.g. for pressure tests and other high-pressure applications. The model features a compact design and is lightweight constructed requiring minimum installation space.
См. также Инструкцию по эксплуатации L2-15 на русском языке и Инструкцию по эксплуатации L2-25

Contents
1. Introduction
2. Principal Specification
3. Construction and Accessories
3.1 Construction
3.2 Accessories
4. General Matters
4.1 Alignment of the Flexible Coupling
4.2 Resilient Mounting
4.3 Drain Pipe
4.4 Location, Installation and Cooling Air
5. Operating the Compressor
5.1 Checks before start-up
5.2 Starting-Running-Stopping Procedures
5.3 Automatic Operation
6. Disassembling and Reassembling
6.1 Disassembling and reassembling of Compressor
6.2 Reassembling of Air Valve
7. Inspection and Maintenance
7.1 Lubricating Oil
7.2 Maintenance after a long non-operational period
7.3 Torque settings
7.4 Air Valves
7.5 Air Cooler
7.6 Maintenance Schedule
8. Cause of Troubles and Remedy
9. Fault Finding Chart
10. Parts and drawings
